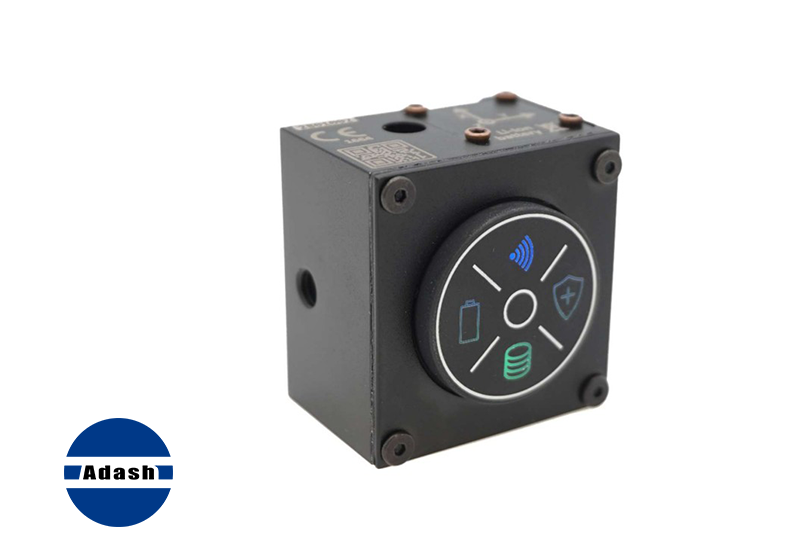

WAVIS – Wireless Adash VIbration Sensor
New feature for the Adash VA5 instrument – support for wireless vibration measurements with the Adash Wireless Sensor, starting from firmware version 0284.
| Acceleration sensor for X, Y direction |
|---|
| Range maximum: ± 16 g |
| Frequency band: 0 ÷ 6.4 kHz |
| Noise level: up to 75 μg/√Hz for ± 2 g range |
| Acceleration sensor for Z direction |
|---|
| Range maximum: ± 50 g |
| Frequency band: 0 ÷ 15 kHz |
| Noise level: up to 25 μg/√Hz for ± 50 g range |
| Wireless communication interface |
|---|
| Standard: IEEE 802.11 b/g/n Wi-Fi, WPA2 |
| Frequency range: 2.4 to 2.4835 GHz |
| Transmit power: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n |
| Working and storage conditions |
|---|
| Range: 8 hours |
| Battery life in standby: 8 hours |
| Battery life while measuring: 3 hours |
| Operating Temperature: -10 to +70°C |
| Humidity: 10 – 100% RH |
| Degree of protection: IP67, dustproof housing, resistant to immersion in water |
| Dimensions and weight |
|---|
| Dimension: 40 x 42 x 27 mm (SxWxG) |
| Weight: 110 g |
Why go wireless?
Imagine needing to diagnose a machine that’s running behind a safety cage or in an area where close access is restricted. Traditional wired sensors can be difficult—or even impossible—to use in such environments. That’s where the Adash Wireless Sensor makes a real difference.
- Simply mount the sensor to the measurement point,
- Step back to a safe distance,
- Collect vibration data wirelessly with your VA5.
This solution not only increases safety but also enhances efficiency and flexibility in challenging measurement conditions. Please note:
Only the Adash Wireless Sensor is compatible with VA5 wireless measurements.
